Single independent machine for rows from 1,30m width on
https://www.cabaindustrie.com/lotti/wp-content/uploads/sites/2/2020/10/IT-110-PRINCIPALE.png

IT 110

Single independent machine for rows from 1,30m width on

In-row cultivator IT 15 is an independent and multi-functional tool-carrier machine usable with lots of tools of Lotti range to carry out various in-row workings, leaf canopy management and grass cutting without charging the tractor’s hydraulics.

https://www.cabaindustrie.com/lotti/wp-content/uploads/sites/2/2020/10/IT-110-H.png
https://www.cabaindustrie.com/lotti/wp-content/uploads/sites/2/2020/09/IT-110-E.png
https://www.cabaindustrie.com/lotti/wp-content/uploads/sites/2/2020/09/IT-110-3A.png

General characteristics

  • Description
  • Technical data
  • Video
  • Optional
  • Accessories
  • Download

Description

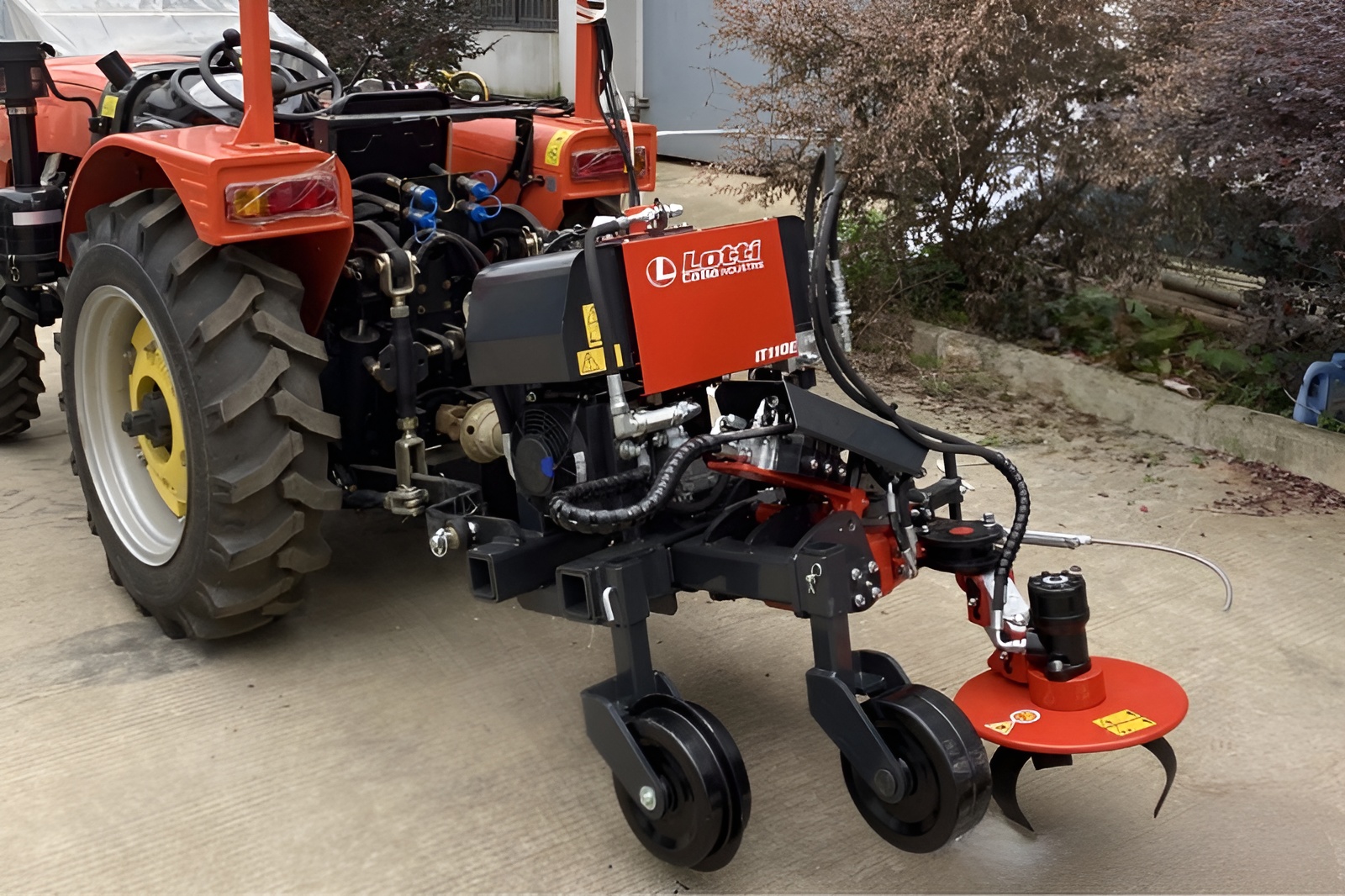

The in-row cultivator IT 110 could work in rows from 1,30m width on. The machine is projected to be mounted on the rear of the tractor, but is also possible to mount it on the front on a reversible tractor.

The machine’s head, on which you can mount the tools, could be adjusted both positively and negatively, allowing to work also on hilly or terrace grounds.

The machine has a standard equipment that consists of

  • hydraulic tank
  • oil cooler
  • oil flow dividing valve (except for H model).

The machine is connected to the tractor by the rear 3 points and needs a PTO with 540rpm to let its hydraulic system work. It is therefore very easy to connect and it’s adaptable to any tractor on the market. Stability and precision are guaranteed by a solid and reliable frame and by the application of two mechanically regulable support wheels.

The inter-row cultivator IT 110 is available in following models:

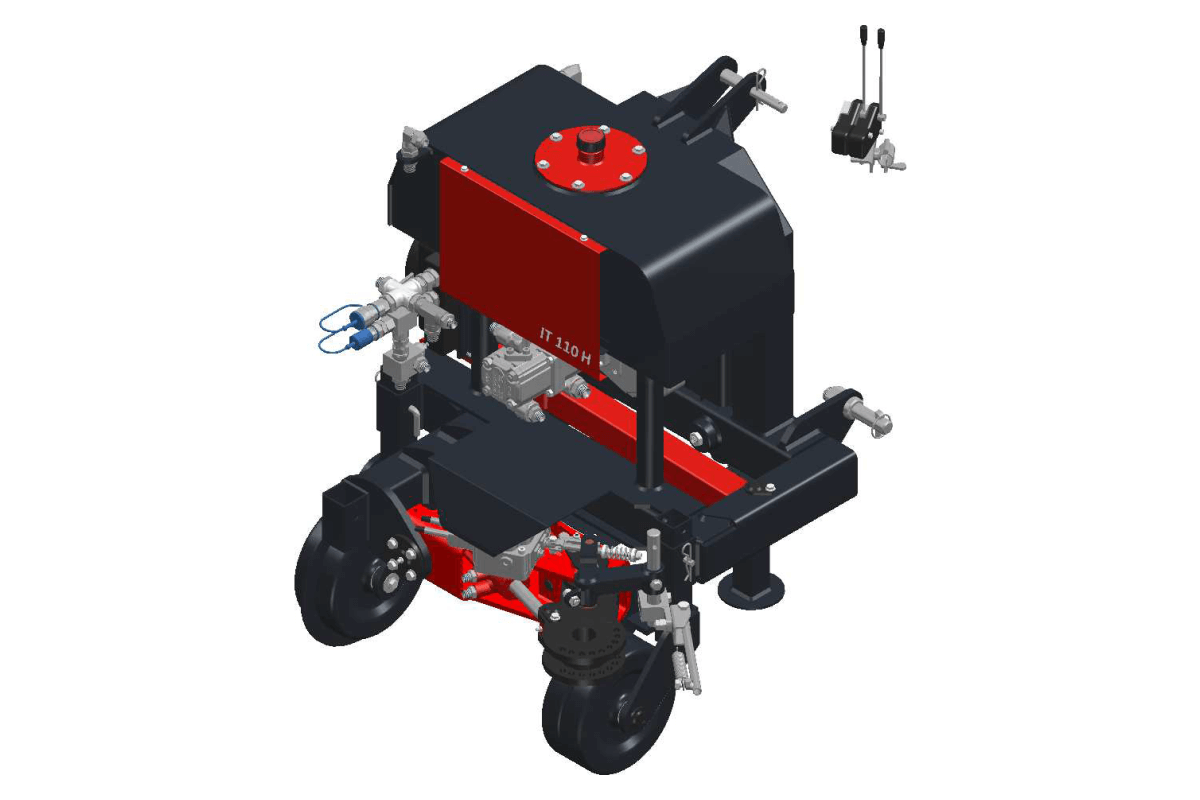

  • IT 110 H: with hydraulic distributor with 2 functions

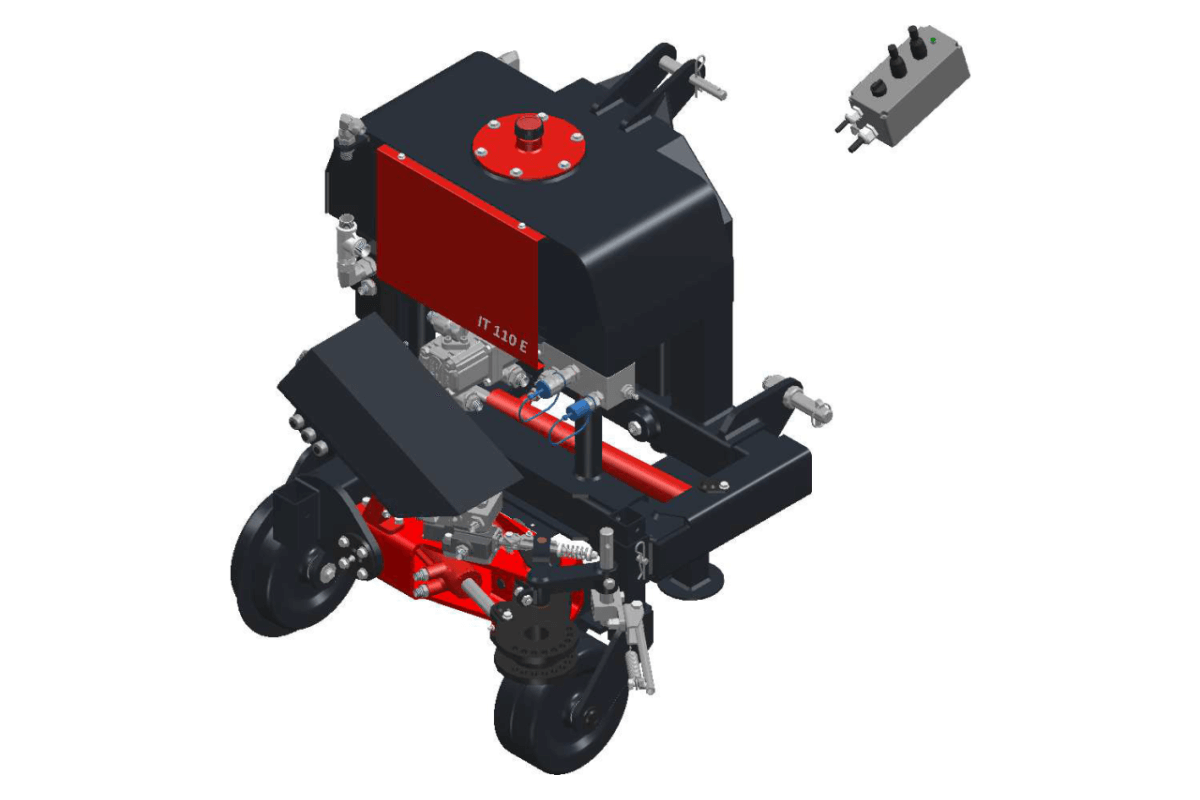

  • IT 110 E: with electro-hydraulic distributor with 4 functions

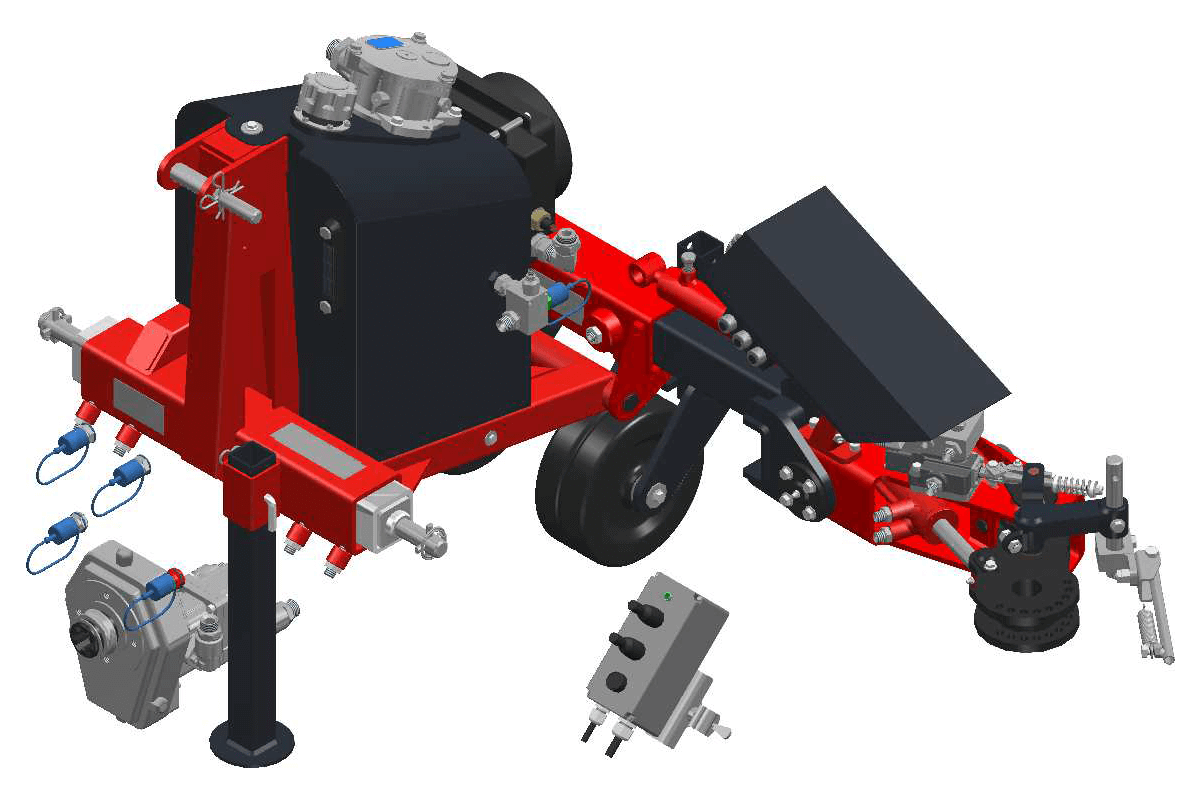

  • IT 110 3A: projected for a reversible tractor

Technical data

Modello
Model
Modèle

Attacco telaio
Frame attachment
Attelage chassis

Peso
Weight
Poids

Inclinazione testa
Head inclination
Inclinaison tête

Text

Apertura sfilo orizzontale
Horizontal ram extension
Extension horizontale

IT 110 H

3 punti posteriore
Rear 3 points
3 points arrière

255 kg

130 cm *

70 – 110 cm

-15°/+25°

40 cm

IT 110 E

3 punti posteriore
Rear 3 points
3 points arrière

275 kg

130 cm *

70 – 110 cm

-15°/+25°

40 cm

IT 110 3A

Anteriore su sollevatore
Front on lifter
Relevage avant

295 kg

160 cm *

100 – 125  cm

-15°/+25°

25 cm

* In order to obtain a proper work, we suggest a tractor whose width is at least 40cm less than the width of the row you wish to work in.

Video

Optional

To specify before buying

Mountable    Included    Not mountable

Code

IT 110 H

IT 110 E

IT 110 3A

SH

Hydraulic ram

Accessories

KVB
https://www.cabaindustrie.com/lotti/wp-content/uploads/sites/2/2020/10/KIT-VALVOLA-DI-BLOCCO.png

Block valve kit (for models E and 3A only)

TOOLS

Our tool range for soil working, leaf canopy managment and grass cutting

Soil working

https://www.cabaindustrie.com/lotti/wp-content/uploads/sites/2/2020/05/rototerra.jpg

RT25 • RT40 • RT50 • RTDRotary soil rake

https://www.cabaindustrie.com/lotti/wp-content/uploads/sites/2/2020/05/dischiera-da-scalzare.jpg

DS1(H) • DS2(H) • DS3(H)Hoeing disc unit

https://www.cabaindustrie.com/lotti/wp-content/uploads/sites/2/2020/05/dischiera-da-rincalzare.jpg

DR1(H) • DR2(H) • DR3(H)Ridging disc unit

https://www.cabaindustrie.com/lotti/wp-content/uploads/sites/2/2020/05/vomere-da-scalzare.jpg

VMS1 • VMS2Hoeing share

https://www.cabaindustrie.com/lotti/wp-content/uploads/sites/2/2020/05/lama-estiva.jpg

LE50 • LE60Summer blade

https://www.cabaindustrie.com/lotti/wp-content/uploads/sites/2/2020/05/stella-sarchiatrice.jpg

ST50 • ST70Weeding star

Leaf canopy managment

Grass cutting

https://www.cabaindustrie.com/lotti/wp-content/uploads/sites/2/2020/05/disco-rasaerba.jpg

DE40 • DE50 • DE60Grass cutting disc

https://www.cabaindustrie.com/lotti/wp-content/uploads/sites/2/2020/05/trincino-a-filo.jpg

TRF35 • TRF50 • TRF70Wire chopper

CONFIGURATIONS

Find out the model that fits you
https://www.cabaindustrie.com/lotti/wp-content/uploads/sites/2/2020/10/IT-110-H.png

IT 110 H

Attachment

Rear 3 points

Control

Cable levers

Hydraulic movements

Head inclination
Head closing

https://www.cabaindustrie.com/lotti/wp-content/uploads/sites/2/2020/09/IT-110-E.png

IT 110 E

Attachment

Rear 3 points

Control

Control box

Hydraulic movements

Head inclination
Head closing
Horizontal ram

https://www.cabaindustrie.com/lotti/wp-content/uploads/sites/2/2020/09/IT-110-3A.png

IT 110 3A

Attachment

Front reversible lifter

Control

Control box

Hydraulic movements

Head inclination
Head closing
Horizontal ram
